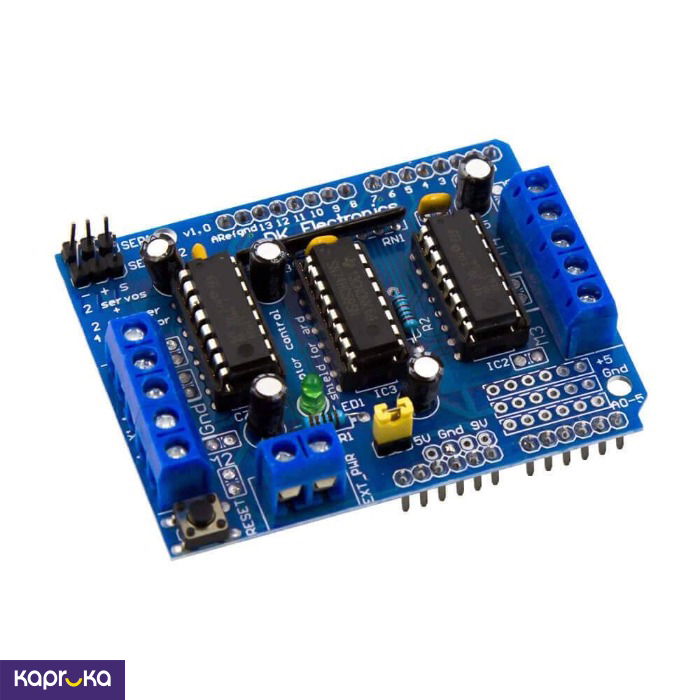

L293d Motor Drive Shield Expansion Board For Arduino Uno Mega2560 Duemilanove

US$6.46
Last 2 remaining
US$6.46
tagsLow cost islandwide delivery tagsIn Stock
Details Q&A

Kapruka Electronics offers the perfect mix of quality, reliability, and price — with nationwide delivery in Sri Lanka.

The L293d Motor Drive Shield Expansion Board is a versatile tool for Arduino projects, available at Kapruka in Sri Lanka. It's perfect for controlling motors in your electronics projects.

  • Compatible with: Arduino Uno, Mega2560, and Duemilanove
  • Motor Control: Supports up to 4 bidirectional DC motors and 4 PWM speed controllers (approx. 0.5% resolution)
  • Stepper Motors: Forward/reverse, single/double step, staggered, micro-step, and rotation angle control
  • H-Bridge Chips: 4-way L293D chip, 0.6A per bridge, peak at 1.2A, with thermal shutdown protection
  • Voltage Range: 4.5V to 36V
  • Terminals: Two large terminal block connectors (10-22AWG) for easier wiring
  • Power Options: Removable jumper for single or separate DC power supplies for Arduino and motors
  • Convenient Reset: Reset button located at the top of the shield

Notes: A pull-down resistor ensures motors stop at power-up. Perfect for your DIY electronics experiments!

The L293D Motor Drive Shield is particularly useful for projects involving robotics, automated machinery, or any application that requires control of DC or stepper motors. Its ability to drive multiple motors simultaneously makes it a versatile choice for complex projects.

Yes, the L293D Motor Drive Shield is designed to be compatible with most standard microcontrollers, including Arduino boards. It easily plugs into the microcontroller, allowing for straightforward integration into your projects.

To install the L293D Motor Drive Shield, simply align the pins of the shield with the corresponding headers on your microcontroller board and press down gently to ensure a secure fit. Ensure all connections are correct to avoid any damage or malfunction.

Yes, technical support is available for customers in Sri Lanka. You can contact the Kapruka customer support team through their website or hotline for assistance with setup, troubleshooting, and other inquiries regarding the L293D Motor Drive Shield.

The L293D Motor Drive Shield is an expansion board used primarily for driving DC motors and stepper motors. It fits directly into a microcontroller and enables the control of up to four motors, making it ideal for robotics and other motor-related projects.

Online price at Kapruka is U$ 6.46
