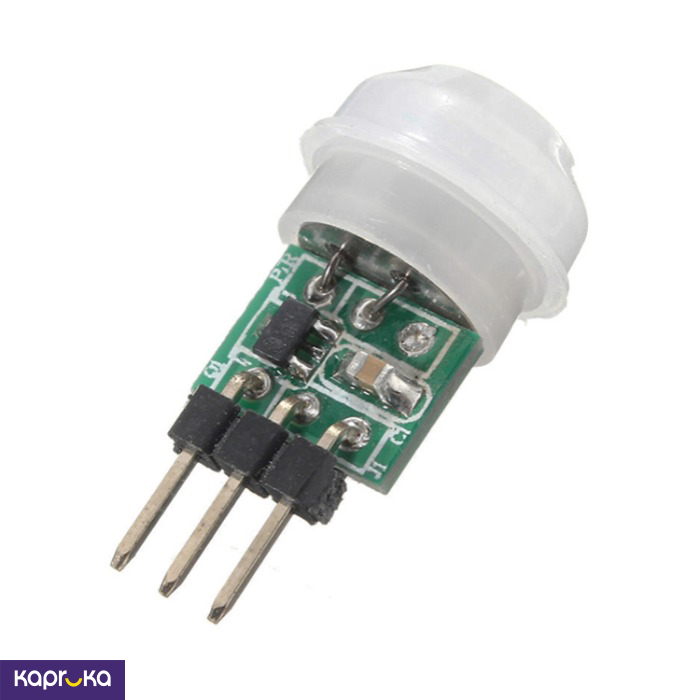

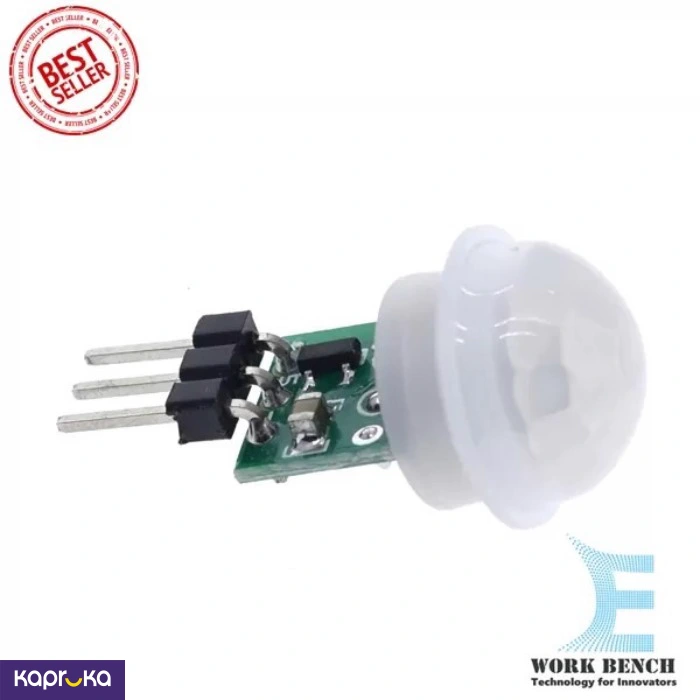

Hc Sr501 Pir Infrared Motion Sensor Module Adjustable Delay And Sensitivity

US$2.33

Select Quantity

- +
Last 4 remaining
US$2.33
tagsLow cost islandwide delivery tagsIn Stock
Details Q&A

Kapruka brings you reliable and affordable electronics — high-quality devices delivered across Sri Lanka.

The HC-SR501 PIR Infrared Motion Sensor Module is perfect for detecting movement. This electronic component senses changes in infrared light, which helps in motion detection and is useful for security systems and automated lighting.

  • Operating Voltage: Works with DC 2.7-12V.
  • Static Power Consumption: Only 0.1mA.
  • Delay Time: 2 seconds.
  • Block Time: 2 seconds.
  • Trigger Mode: Repeatable.
  • Sensing Range: Up to 100 degrees cone angle, 3-5 meters distance, depending on the lens.
  • Working Temperature: Functions well from -20 to +60 degrees Celsius.
  • PCB Dimensions: Measures 10mm x 8mm.
  • Module Lens: Comes with a small lens.

Available at Kapruka, this sensor is ideal for projects in Sri Lanka that require efficient motion detection.

Important Notes:

  • The sensing range can vary based on the specific lens used.

Maintenance generally includes keeping the sensor clean and free of obstructions. Regular checks to ensure the sensor is functioning correctly and not blocked by objects that might impair its effectiveness are recommended.

Yes, the sensor can be used outdoors, but it should be placed in a protective enclosure to prevent damage from environmental conditions such as rain and dust, which are common in Sri Lanka.

Installation involves mounting the sensor in a suitable location, connecting it to a power source and integrating it with other electronic devices or systems depending on the application. It`s recommended to follow the manufacturer`s instructions or consult a professional for proper installation.

The HC-SR501 PIR Infrared Motion Sensor is used for detecting motion through infrared signals from humans or animals. It is commonly used in security systems, automatic lighting systems, and other applications where motion detection is required.

The sensor typically has a detection range that can vary, but it generally covers a significant area directly in front of where it is positioned. The exact range and coverage details are usually provided in the product specifications.
